Manufacturer part #: J100-1010
Manufacturer part #: J100-1010
Navtec toggles release fatigue stress and assist in allowing the load forces to align with the shroud angle.

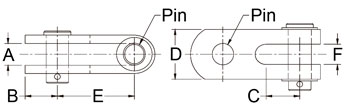

| Features | American | Metric | Description | J100 Toggle |
|---|---|---|
| ROD SIZE | -4 | |
| PIN | 0.375 in | 9.53 mm |
| A | 0.373 in | 9.47 mm |
| B | 0.37 in | 9.3 mm |
| C | 0.38 in | 9.5 mm |
| D | 0.83 in | 21.1 mm |
| E | 0.45 in | 11.4 mm |
| F | 1.8 in | 45.7 mm |
 | ||
Manufacturer part #: J100-1010
Navtec toggles release fatigue stress and assist in allowing the load forces to align with the shroud angle.
