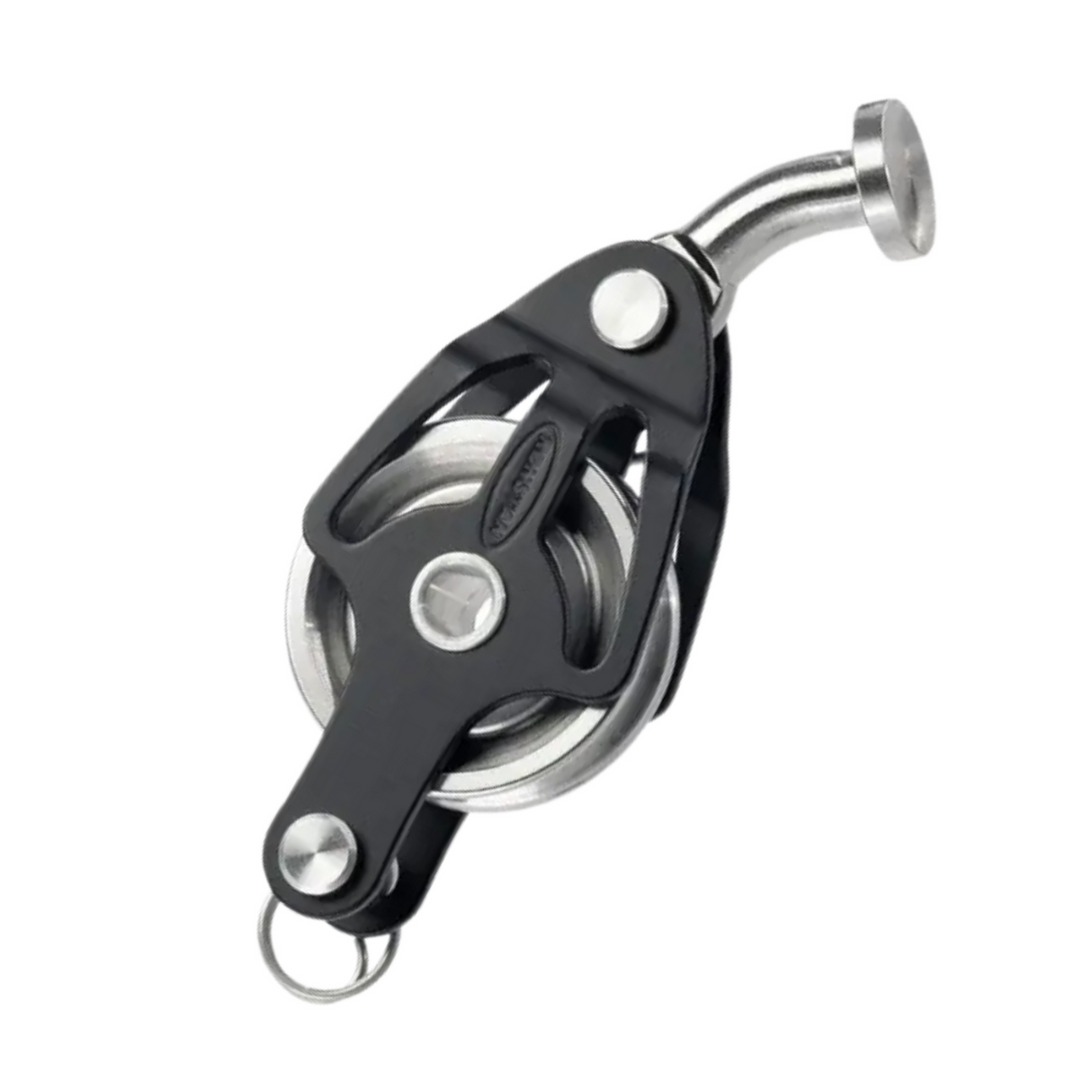

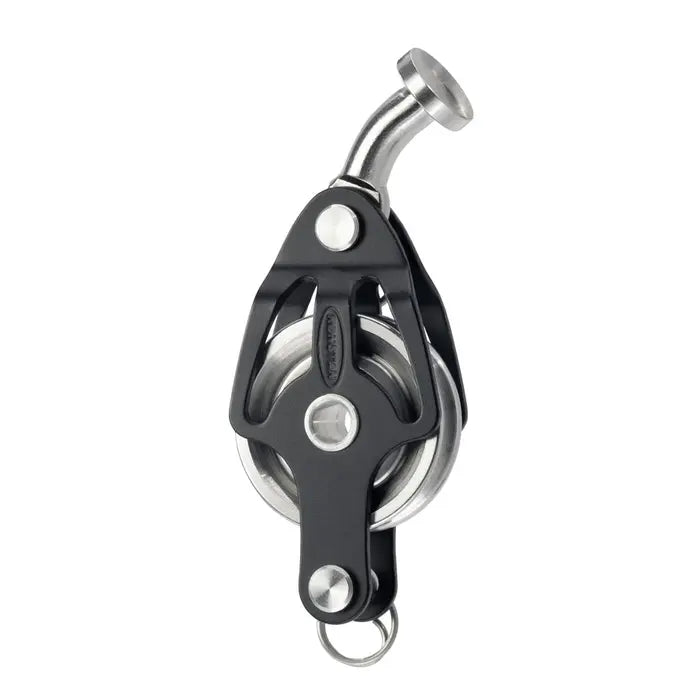

Series 30 Ball Bearing ILCA® Top Vang Block with becket
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
High load stainless steel single sheave block with becket and vang key
FEATURES
Narrow sheave suits up to 6mm (1/4”) lines.
Becket with removable clevis pin allows sailors to drop in a pre-spliced line.
Designed specific for the high load application required for the ILCA® vang block.
Includes the ILCA® vang key. No shackles required to attached to block.
Strong yet light weight.
Specifications
| Pin Ø (in) | 3/16 |
|---|---|
| Max. Rope diameter (in) | 1/4 |
| M.W.L. (lb) | 880 |
| B.L. (lb) | 1760 |
| Weight (oz) | 2.0 |
Cheeks: Grade 316 Stainless steel with a hard-wearing black coating.
Sheave: Precision machined from Grade 2205 stainless steel.
Bearing race: Grade 304 stainless steel
