Manufacturer part #: RF41510 1
Technical Description
Series 40 AP Fiddle Becket Block
1 9/16 in + 15/16 in
40 mm + 24 mm
5/16 in
8 mm
3/16 in
5 mm
880 lb
400 kg
2200 lb
1000 kg
3.2 oz
91 g
Manufacturer part #: RF41510

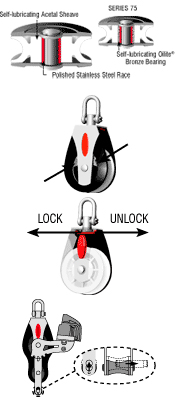

Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines Snap fit removable becket pin Spare parts - RF41010 Replacement Becket Pin, RF150 Shackle All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.
Applications
Mainsheet Halyard Vang Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8 m (26 ft) Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems. Materials
U.V. stabilised Acetal sheaves Impact and U.V. resistant, fibre reinforced Nylon cheeks Grade 316 stainless steel bearing race Grade 316 stainless steel load strap and head fitting Impact and UV resistant, fibre reinforced Nylon cheeks
