Manufacturer part #: RF55410 1
Technical Description
Series 55 BB Orbit Quad Becket Swivel Block
2 5/32 in
55 mm
3/8 in
10 mm
1650 lb
750 kg
3300 lb
1500 kg
11.2 oz
316 g
Manufacturer part #: RF55410
Ultra Lightweight Low friction 2-stage Orbital ball bearing system Highest working load in its class Low profile and compact High performance cleating Swivel shackle head for unlimited block rotation Stainless steel shackle head for ultimate durability and compatibility with harsh fixing points Ultra low profile integrated beckets Lightweight

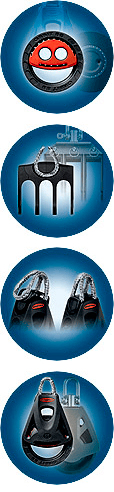

Kilogram for kilogram of working load, BB and RT Orbit Blocks™ are the world's lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimises the mass of the inactive return race and hub.
Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.
Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block.
Highest working load in its class
The orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximises load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.
The floating sheave and bearing system is supported by a fibre-reinforced load frame. The design was computer modelled to be stress optimised. The Dyneema® Link is produced from FSE Robline SK75 fibre, which is 10 times stronger and lighter than steel, and provides the final connection from the block to the load point.
Applications
Mainsheet systems on dinghies, sportsboats and small keelboats to 9 m (30 ft) Spinnaker sheets on dinghies, sportsboats and small keel boats to 9 m (30 ft) Halyard, Vang and Backstay application on boats to 8 m (26 ft) Control line applications on larger yachts Mainsheet systems and spinnaker sheets on dinghies, catamarans, sportsboats and small keel boats to 9 m (30 ft) RF55410 when paired with a RF56330B and a RF35101 lashed to the becket produces a powerful 8:1 mainsheet system for use on catamarans to 5.5 m (18 ft). This can be increased to 9:1 by replacing the RF35101 with a RF35202 Materials
Ball bearings - High compression strength carbon black Acetal Stage 2 bearing - Carbon fibre reinforced, PTFE impregnated Nylon Frame/Cheeks - Toughened, glass fibre reinforced Nylon Rope Link: UV stabilised, multi-strand impregmented SK75 Dyneema® Head fitting: grade 316 stainless steel Ball Bearings: high compression strength carbon black Acetal
