Tylaska | SKU: TY1230-SC

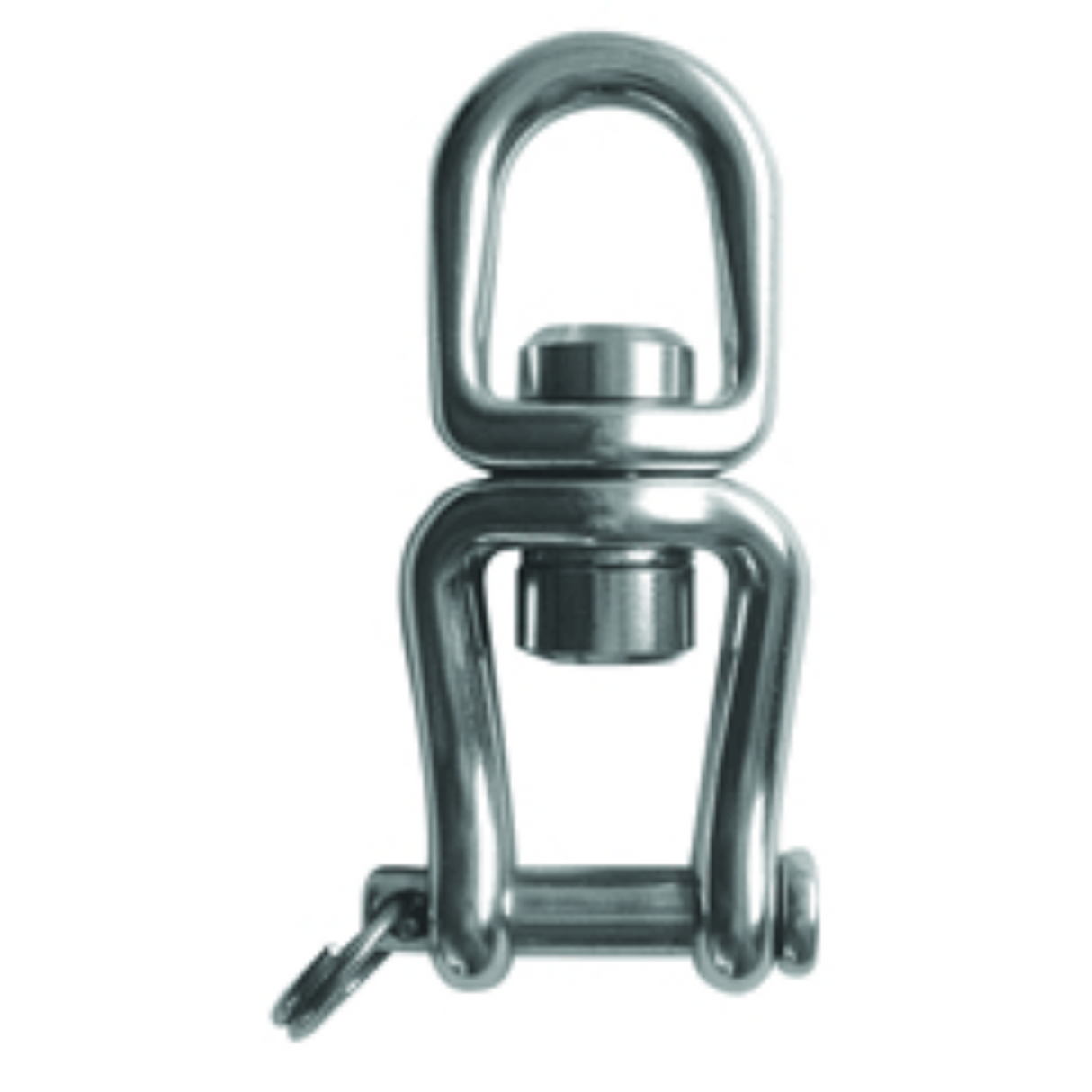

Tylaska T30 Std/Clevis Bail Swivel

Name: Tylaska T30 Std/Clevis Bail Swivel
Brand: Tylaska
SKU: TY1230-SC
Price: 294.20 USD
Availability: InStock

$294.20 $392.27

Pickup available at 1830 East Interstate 30

Usually ready in 24 hours

DELIVERY AND RETURN INFO

Tylaska Bail Swivels - Std/Clevis

Standard/Clevis bail swivels available in sizes T5, T8, T12, T20, T30, T40, & T50

Tylaska Bail Swivels - Std/Clevis
Part Number	A	B	Breaking Load	C	D	E	F	G	H	Safe Working Load
TY1205-SC	13.5 MM	16.3 MM	2270 KG	66 MM	25.7 MM	33 MM	33 MM	6.1 MM	14 MM	1130 KG
TY1208-SC	1130 KG	18.8 MM	3630 KG	76.2 MM	30.2 MM	76.2 MM	7.1 MM	6.9 MM	13.2 MM	1810 KG
TY1212-SC	18.3 MM	22.6 MM	5440 KG	89.7 MM	35.3 MM	41.2 MM	8.4 MM	7.9 MM	15.8 MM	2720 KG
TY1220-SC	25.1 MM	28.7 Mm	9070 KG	120.9 MM	47.2 MM	54.9 MM	11.2 MM	10.9 MM	21.3 MM	4540 KG
TY1230-SC	30.5 MM	32.8 MM	13610 KG	150.1 MM	57.9 MM	66 MM	26 MM	14.2 MM	16.9 MM	6800 KG
TY1240-SC	45.5 MM	50.8 MM	18140 KG	223.5 MM	83.3 MM	99.1 MM	18.8 MM	19.1 MM	38.1 MM	9070 KG
TY1240-SC	50.8 MM	57.4 MMK	22680 KG	249.9 MM	92.7 MM	88.1 MM	21.1 MM	22.2 MM	44.2 MM	11340 KG
