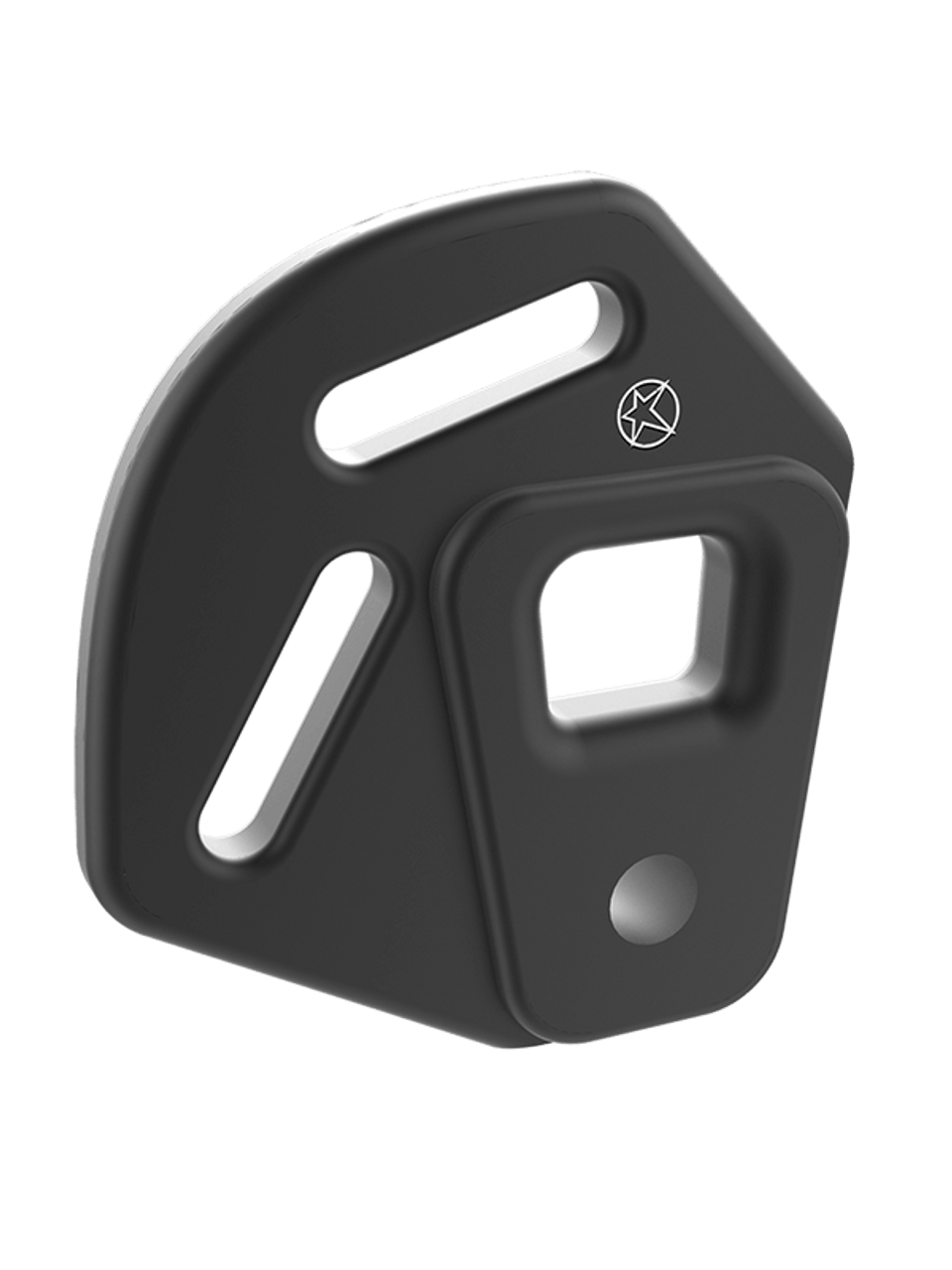

FRrd12tp Tack Plate
Tack Plates
| Model | A = Pin ø | B = Width Tape | C = Thickness | Weight | Used With | ||||
|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | g | oz | ||
| FRrd6tp | 6 | 1/4 | 15 | 19/32 | 10 | 3/8 | 64 | 2 | FR87 |
| FRrd8tp | 8 | 5/16 | 25 | 1 | 10 | 3/8 | 80 | 3 | FR100 |
| FRrd10tp | 10 | 3/8 | 25 | 1 | 15 | 19/32 | 147 | 5 | FR125 |
| FRrd12tp | 12 | 1/3 | 30 | 1 3/16 | 18 | 11/16 | 240 | 8 | FR150 |
| FRrd14tp | 14 | 9/16 | 40 | 1 9/16 | 20 | 25/32 | 310 | 11 | FR200 |
| FRrd16tp | 16 | 5/8 | 40 | 1 9/16 | 25 | 1 | 721 | 25 | FR250 |
