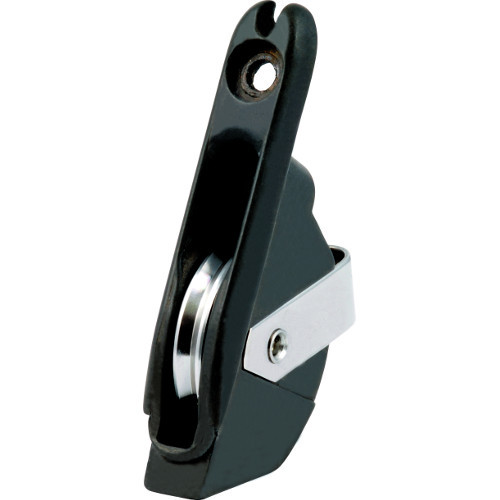

Low Profile Sheave Box – Medium
- Low profile hook in aluminium body sheave box with a choice of two sheaves.
- This sheave box is designed to “hook” into the mast. The lower lip sits inside the mast whilst the top is fixed via a rivet of screw.
- Suited for installation into masts or booms. The sheave is not removable.
Key Features:
- Durable Construction: The body is made from cast aluminium for long-lasting performance.
- Various Sheave Options: A choice of two sheave materials to suit your specific application.
- Versatile Compatibility: Suitable for a wide range of mast or boom sizes and applications.
Sheave Options:
- Acetal Plain Bearing: The lightweight, low maintenance option. Suitable for maximum working loads up to 400Kg. Can be used with rope and wire.
- Stainless Steel Dynamic: The lowest friction for maximum performance option. Suitable for maximum working loads up to 450Kg. Ideal for fast running systems. Can be used with rope and wire.
Technical Description
15/64 in
6 mm
1 1/2 in
38 mm
-
Stainless Steel
2 9/32 x 33/64 in
58 X 13 mm
0.15 lbm
68 g
13/64 in
5 mm
450000 g
450 kg
900000 g
900 kg
