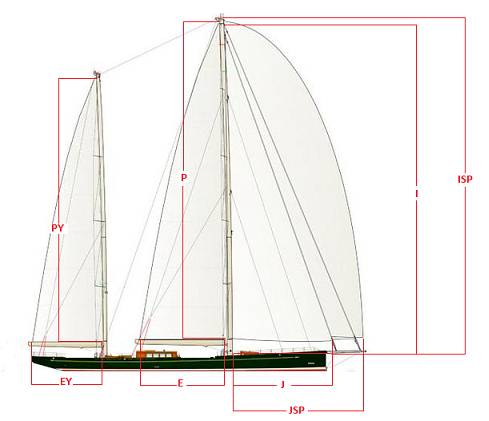

Sailboat Rig Dimensions


I = Height of headstay termination above the sheer line.

J = Distance between the headstay termination at the deck and the front of the mast at the sheer line.

P = Distance between black bands on the mast, or the maximum luff length of the main.

E = Distance between black bands on the boom, or the maximum foot length of the main.

PY & EY are similar to P & E, but indicate mizzen dimensions.

TYPE/CLASSIJPEDSPL
10 METER 65 30 75 30 30000
11 METER 32.17 10.17 36.08 13.58 3600
11 METER ODR 32.17 10.17 36.08 13.58 3600
1D 35 42.49 12.52 44.46 18.58 5900
1D48 57.7 16.75 61.58 23 17860
22 SQ METER
30 SQ METER
5.5 METER
6 METER
6 METER MODERN
6.5 M SERIES 31.7 8.75 30.5 10.8 2350
6.5M 36.42 7.92 33.83 12.42 1550
75 METER
8 METER (PRE WW2) 41 16 54.3 20 18500
8 METER MODERN
