Schaefer System 1100, 1/4" Wire, 1/2" Pin (6/13mm)

Manufacturer part #: 1100-03 Furler

Model	Sta-Lok	Boat Size	Wire Ø	Pin Ø	Rod Size	Sta-Lok Length	System Length
1100-01	Yes	27 ft -31 ft 8.2 m - 9.5 m	3/16 in 5 mm	3/8 in 9.5 mm	-4 4.37 mm	2 1/8 in 54 mm	43 ft 13 m
1100-44	No	27 ft -31 ft 8.2 m - 9.5 m	3/16 in 5 mm	3/8 in 9.5 mm	-4 4.37 mm	-	43 ft 13 m
1100-02	Yes	27 ft -31 ft 8.2 m - 9.5 m	7/32 in 5.5 mm	7/16 in 12 mm	-6 5.03 mm	2 1/2 in 64 mm	43 ft 13 m
1100-55	No	27 ft -31 ft 8.2 m - 9.5 m	7/32 in 5.5 mm	7/16 in 12 mm	-6 5.03 mm	-	43 ft 13 m
1100-03	Yes	27 ft - 31 ft 8.2 m - 9.5 m	1/4 in 6 mm	1/2 in 13 mm	-8 A(5.72 mm)	2 9/16 in 65 mm	43 ft 13 m
1100-66	No	27 ft - 31 ft 8.2 m - 9.5 m	1/4 in 6 mm	1/2 in 13 mm	-8 A(5.72 mm)	-	43 ft 13 m
1100-04	Yes	27 ft -31 ft 8.2 m - 9.5 m	9/32 in 7 mm	1/2 in 13 mm	-10 6.35 mm	3 in 76 mm	43 ft 13 m

Manufacturer part #: 1100-03 Furler

DescriptionSystem 1100

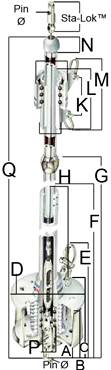

	Features	American	Metric
	A	3 1/4 in	83 mm
	B	7 1/2 in	190 mm
	C	8 11/16 in	221 mm
	D	6 3/4 in	171 mm
	E	11 1/8 in	283 mm
	F	27 1/8 in	689 mm
	G	47 1/2 in	1.20 m
	H	1 3/16 in	30 mm
	I	2 in	51 mm
	J	3 1/8 in	79 mm
	K	3 11/16 in	94 mm
	L	5 3/16 in	132 mm
	M	6 in	153 mm
	N	1 1/8 in	29 mm
	O	43 ft	13 m
	P	1 5/8 in	41 mm

Manufacturer part #: 1100-03 Furler

All Schaefer furling systems are easily adaptable to rod headstays. Extrusions can be installed after rod is shortened and re-headed.

• Boat sizes are approximate for typical wire/pin combinations
• Wire size and pin diameter are critical sizing/ordering dimensions
• All Schaefer Furlers are easily adaptable to wire or rod headstays
• Additional extrusions may be ordered for custom length systems
• Custom Sta-Lok™ and base toggle/link combinations available
