Schaefer System 3100, No Sta-Lok, 5/8"(16mm) Pin

Manufacturer part #: 3100-44 Furler

Model	Sta-Lok	Boat Size	Wire Ø	Pin Ø	Rod Size	Sta-Lok Length	System Length
3100-01	Yes	41 ft - 55 ft 12.5 m - 16.8 m	5/16 in 8 mm	5/8 in 16 mm	-12 7.14 mm	3 1/4 in 83 mm	64 ft 7 1/2 in 19.7 m
3100-44	No	41 ft - 55 ft 12.5 m - 16.8 m	5/16 in 8 mm	5/8 in 16 mm	-12 7.14 mm	-	64 ft 7 1/2 in 19.7 m
3100-02	Yes	41 ft - 55 ft 12.5 m - 16.8 m	3/8 in 10 mm	5/8 in 16 mm	-17 8.38 mm	3 3/4 in 95 mm	64 ft 7 1/2 in 19.7 m
3100-03	Yes	41 ft - 55 ft 12.5 m - 16.8 m	7/16 in 11 mm	3/4 in 19 mm	-22 9.53 mm	3 3/4 in 95 mm	64 ft 7 1/2 in 19.7 m
3100-55	No	41 ft - 55 ft 12.5 m - 16.8 m	5/16 in 8 mm	5/8 in 16 mm	-12 7.14 mm	-	64 ft 7 1/2 in 19.7 m
3100-04	Yes	41 ft - 55 ft 12.5 m - 16.8 m	1/2 in 12.7 mm	7/8 in 22 mm	-12 7.14 mm	4 5/8 in 118 mm	64 ft 7 1/2 in 19.7 m
3100-66	No	41 ft - 55 ft 12.5 m - 16.8 m	1/2 in 12.7 mm	7/8 in 22 mm	-12 7.14 mm	-	64 ft 7 1/2 in 19.7 m

Manufacturer part #: 3100-44 Furler

DescriptionSystem 3100

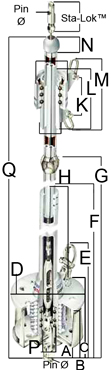

	Features	American	Metric
	A	4 3/4 in	121 mm
	B	10 1/8 in	257 mm
	C	11 13/16 in	300 mm
	D	11 1/8 in	283 mm
	E	15 7/8 in	403 mm
	F	41 1/4 in	1.05 m
	G	60 1/2 in	1.54 m
	H	1 1/2 in	38 mm
	I	2 1/2 in	64 mm
	J	4 3/8 in	111 mm
	K	4 3/8 in	111 mm
	L	6 5/8 in	168 mm
	M	7 3/4 in	197 mm
	N	2 7/16 in	62 mm
	O	64 ft 7 1/2 in	19.7 m
	P	2 5/8 in	67 mm

Manufacturer part #: 3100-44 Furler

All Schaefer furling systems are easily adaptable to rod headstays. Extrusions can be installed after rod is shortened and re-headed.

• Boat sizes are approximate for typical wire/pin combinations
• Wire size and pin diameter are critical sizing/ordering dimensions
• All Schaefer Furlers are easily adaptable to wire or rod headstays
• Additional extrusions may be ordered for custom length systems
• Custom Sta-Lok™ and base toggle/link combinations available
