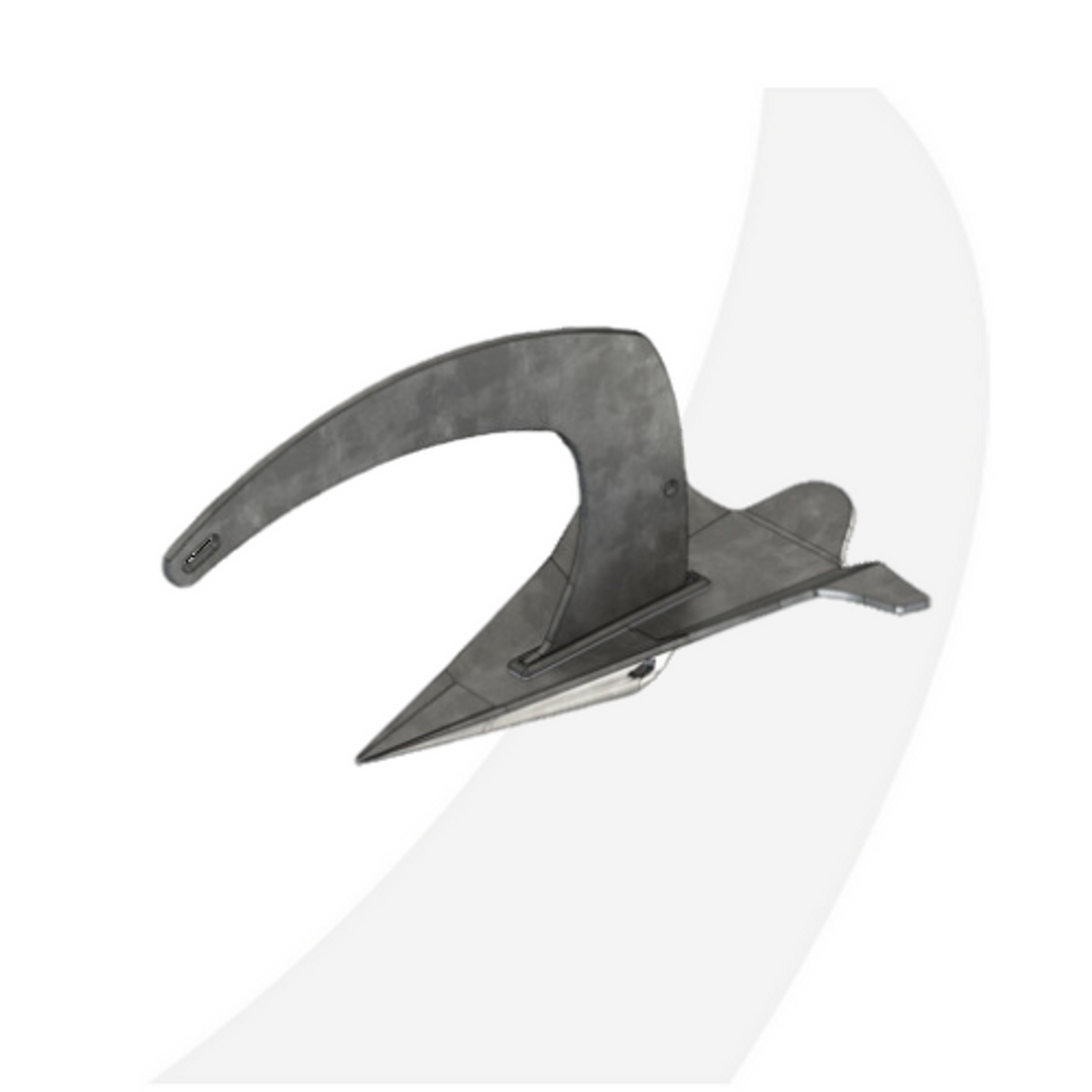

M2 17 lb M2 Galvanized Steel Anchors (MTS-M2GV8)
M2 MODEL DIMENSIONS (IMPERIAL) INCHES | A | B | C | D | E | F | G | H | I | J | K |
8 lbs | 20 | 12 | 12 | 5 | 6 | 1 | 0 | 14 | 10 | 3 | 3 |
13 lbs | 23 | 14 | 14 | 6 | 7 | 1 | 0 | 16 | 11 | 3 | 4 |
17 lbs | 26 | 16 | 15 | 7 | 8 | 1 | 0 | 18 | 13 | 3 | 4 |
25 lbs | 29 | 18 | 17 | 8 | 9 | 1 | 1 | 20 | 14 | 4 | 5 |
35 lbs | 32 | 19 | 19 | 8 | 10 | 2 | 1 | 22 | 16 | 4 | 5 |
45 lbs | 35 | 21 | 20 | 9 | 11 | 2 | 1 | 24 | 17 | 4 | 5 |
55 lbs | 37 | 23 | 22 | 10 | 11 | 2 | 1 | 26 | 18 | 5 | 6 |
65 lbs | 39 | 24 | 23 | 10 | 12 | 2 | 1 | 27 | 19 | 5 | 6 |
85 lbs | 43 | 27 | 25 | 11 | 13 | 2 | 1 | 30 | 21 | 5 | 7 |
105 lbs | 46 | 28 | 27 | 12 | 14 | 2 | 1 | 31 | 22 | 6 | 7 |
125 lbs | 50 | 31 | 29 | 13 | 15 | 2 | 1 | 34 | 24 | 6 | 8 |
155 lbs | 52 | 32 | 31 | 14 | 16 | 3 | 1 | 36 | 26 | 7 | 8 |
175 lbs | 55 | 34 | 33 | 14 | 17 | 3 | 1 | 38 | 27 | 7 | 9 |
