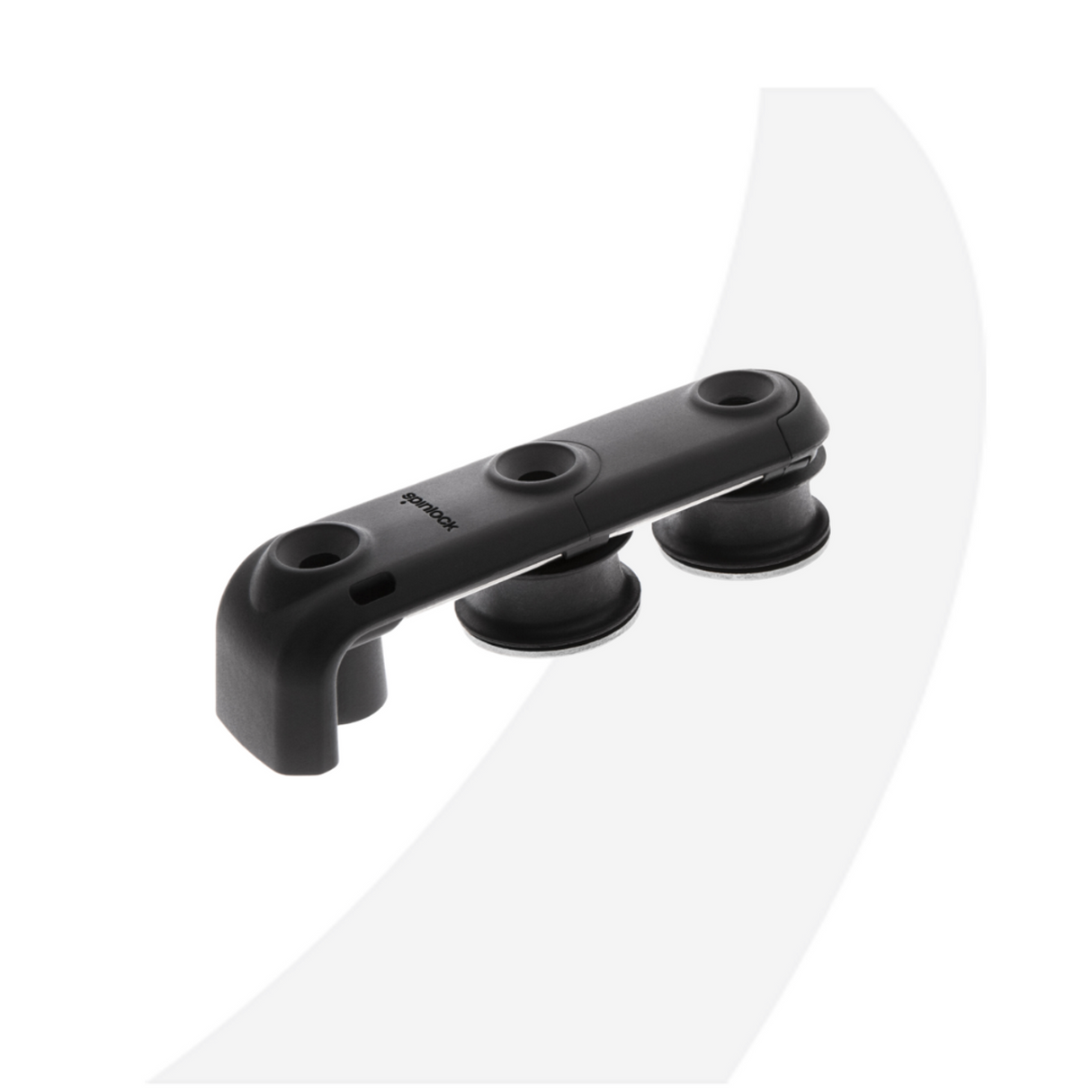

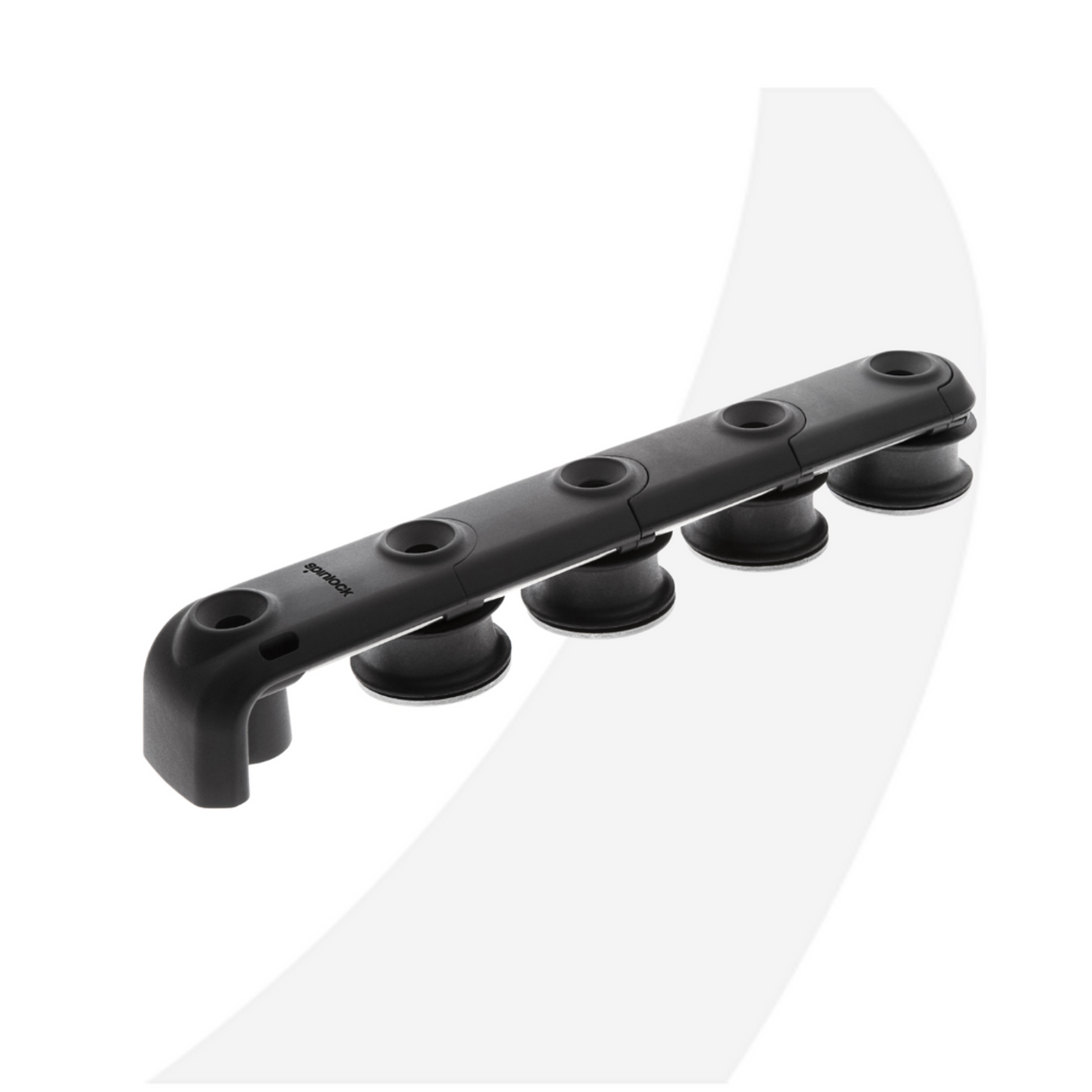

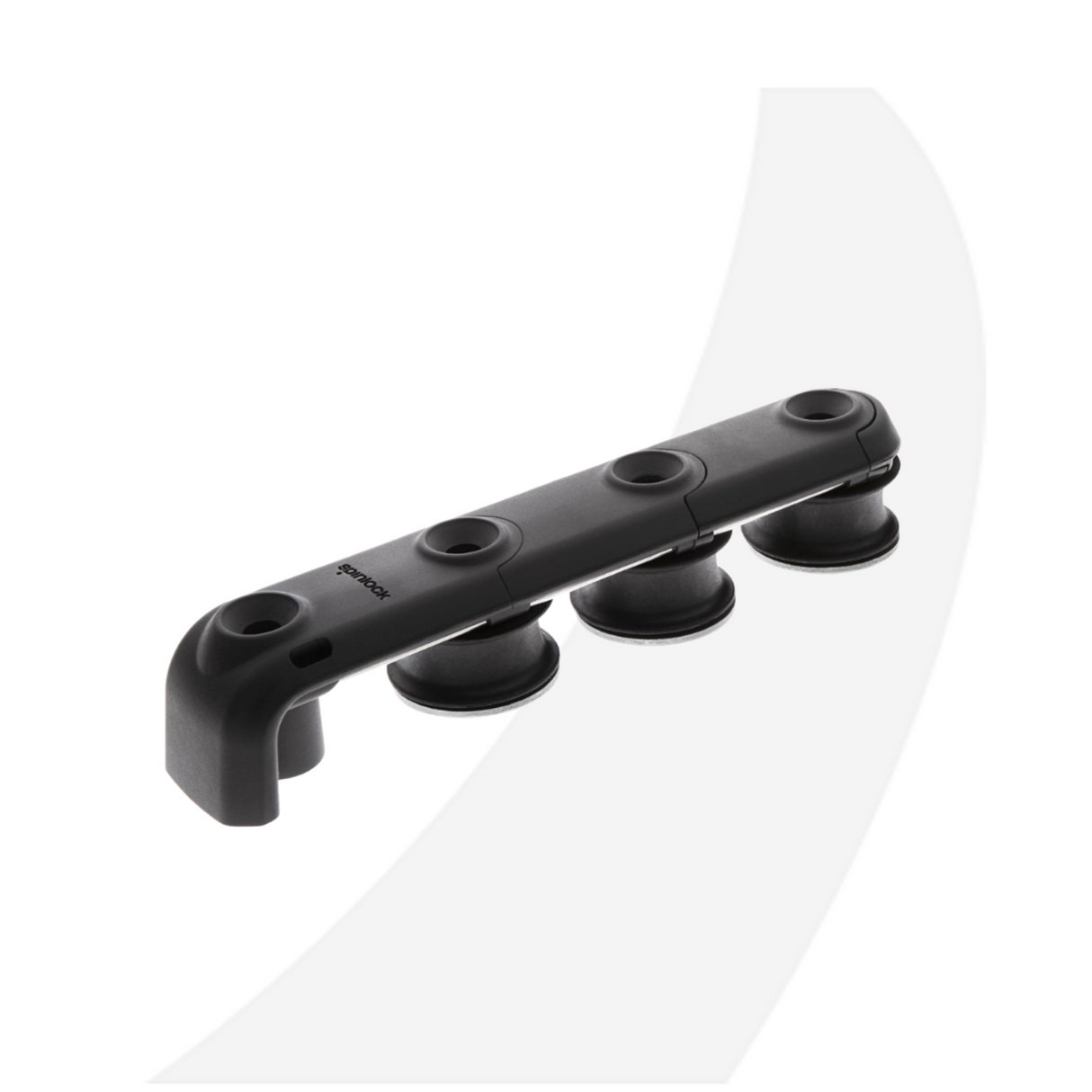

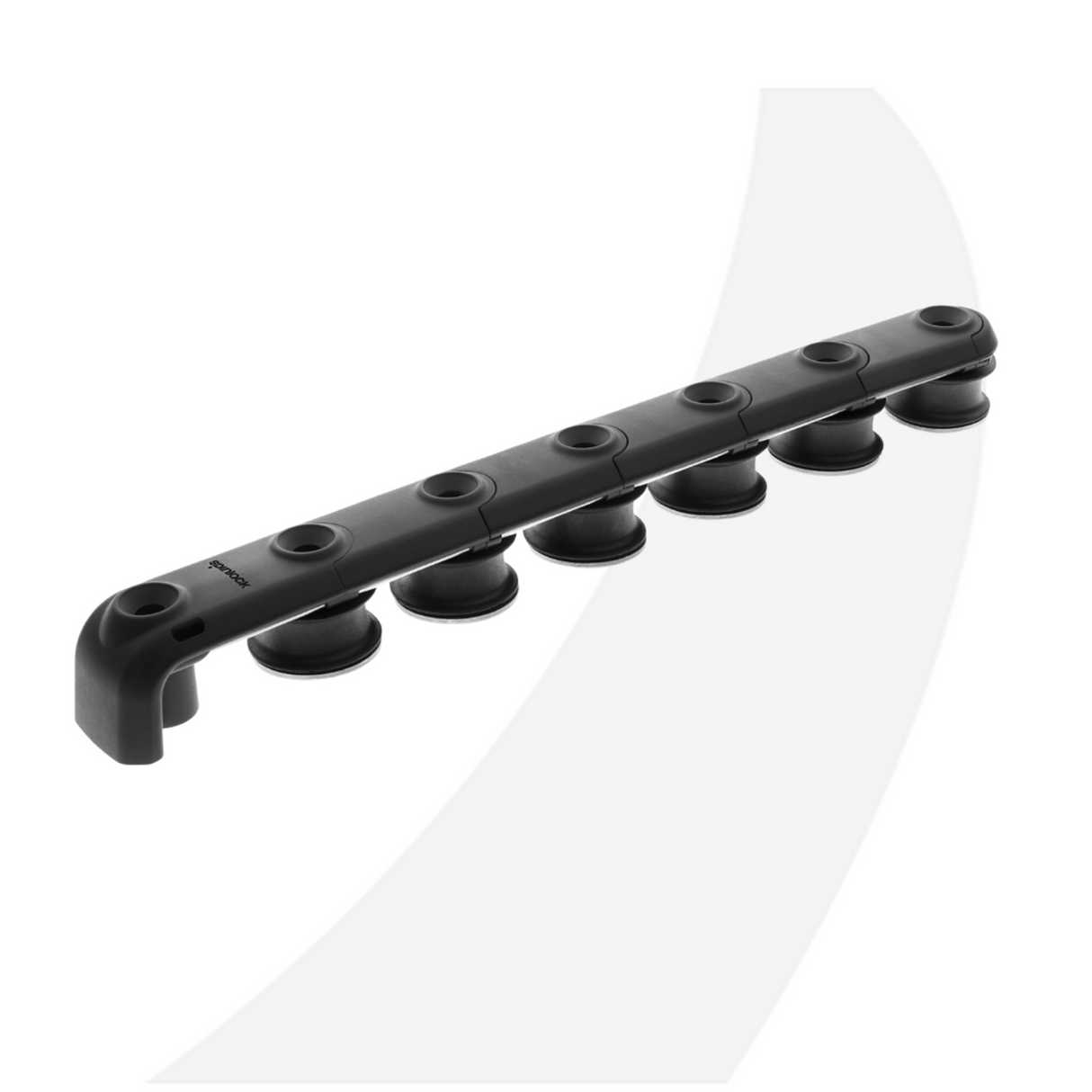

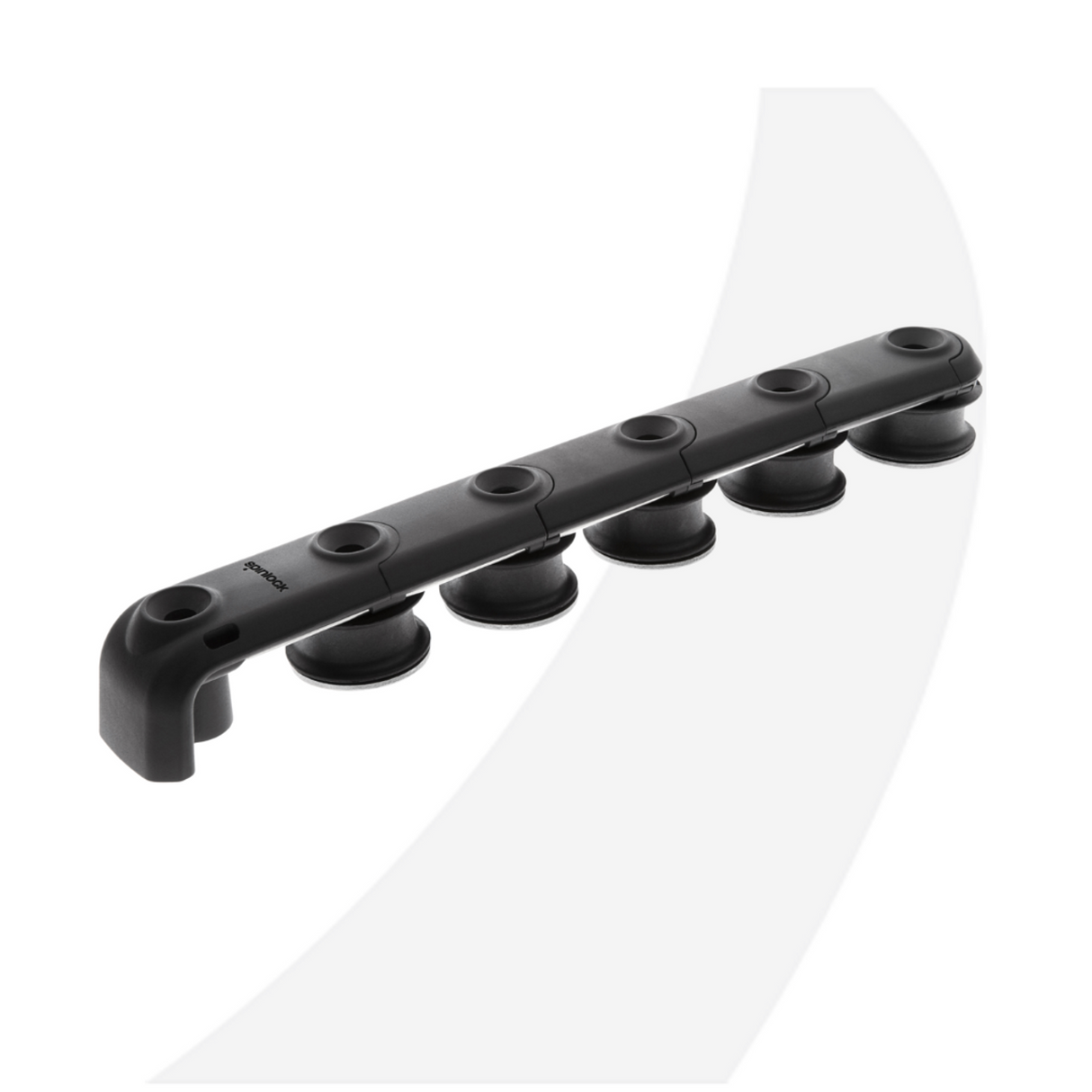

Spinlock Small Boat Sheave Organizer

• Small boat organiser - 25mm sheaves
• Stainless steel ‘wear strip’ prevents local rope damage
• Symmetric or asymmetric configurations with full range of sheaves (2 to 6 sheaves)
• Stainless steel unlinked base for fitting on curved surfaces which simplifies deck sealing
• Double stack with BE10/2 or BE10/3 for leading additional lines
• Fibre-reinforced construction
• Curves to follow the shape of the deck

Specifications

• Sheave Diameter/Type
• 25mm (1") composite

• SWL per Sheave
• 400kg (880lbs)

• Total SWL per unit
• No of sheaves x 200kg (440lbs)

• Line Diameter
• Up to 10mm (3/8")
