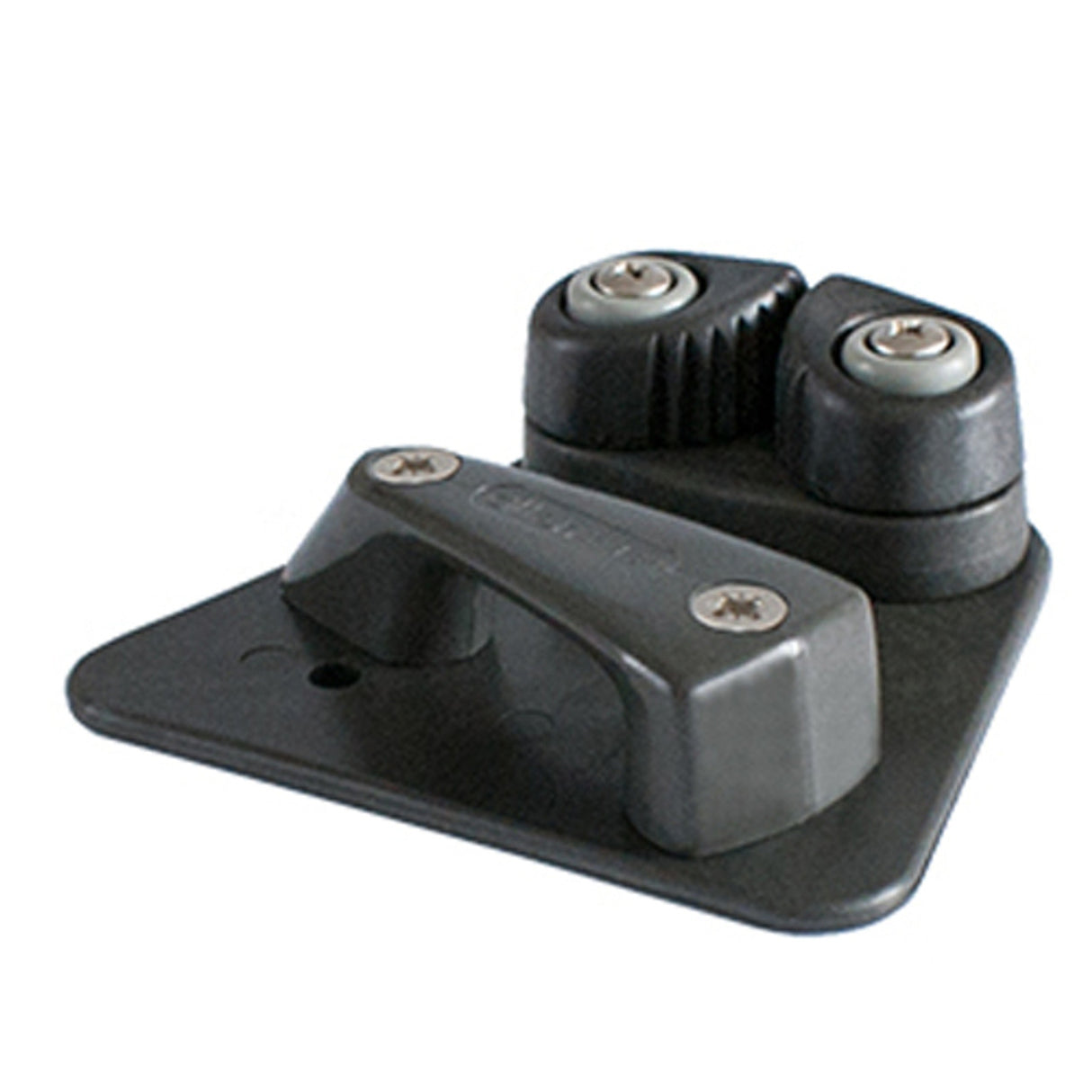

Fairlead With A.676 Cam Cleat
Originally designed to be mounted to the side tank or gunwale of a wooden dinghy such as an enterprise, cadet or mirror.
The fairlead guides the rope into the cam cleat, allowing for a better sheeting angle.
Fixed to the deck using the two fixing holes in the base plate.
The A.676 cam cleat features the same jaw profile as the aluminium version, but the jaws and base are moulded from a proprietary material developed specifically for low weight and good heat dissipation to increase wear resistance when compared to standard acetals. The removal of ball bearings offers a further weight reduction.
The Allenite cam cleat offers a good weight saving over the aluminium version.

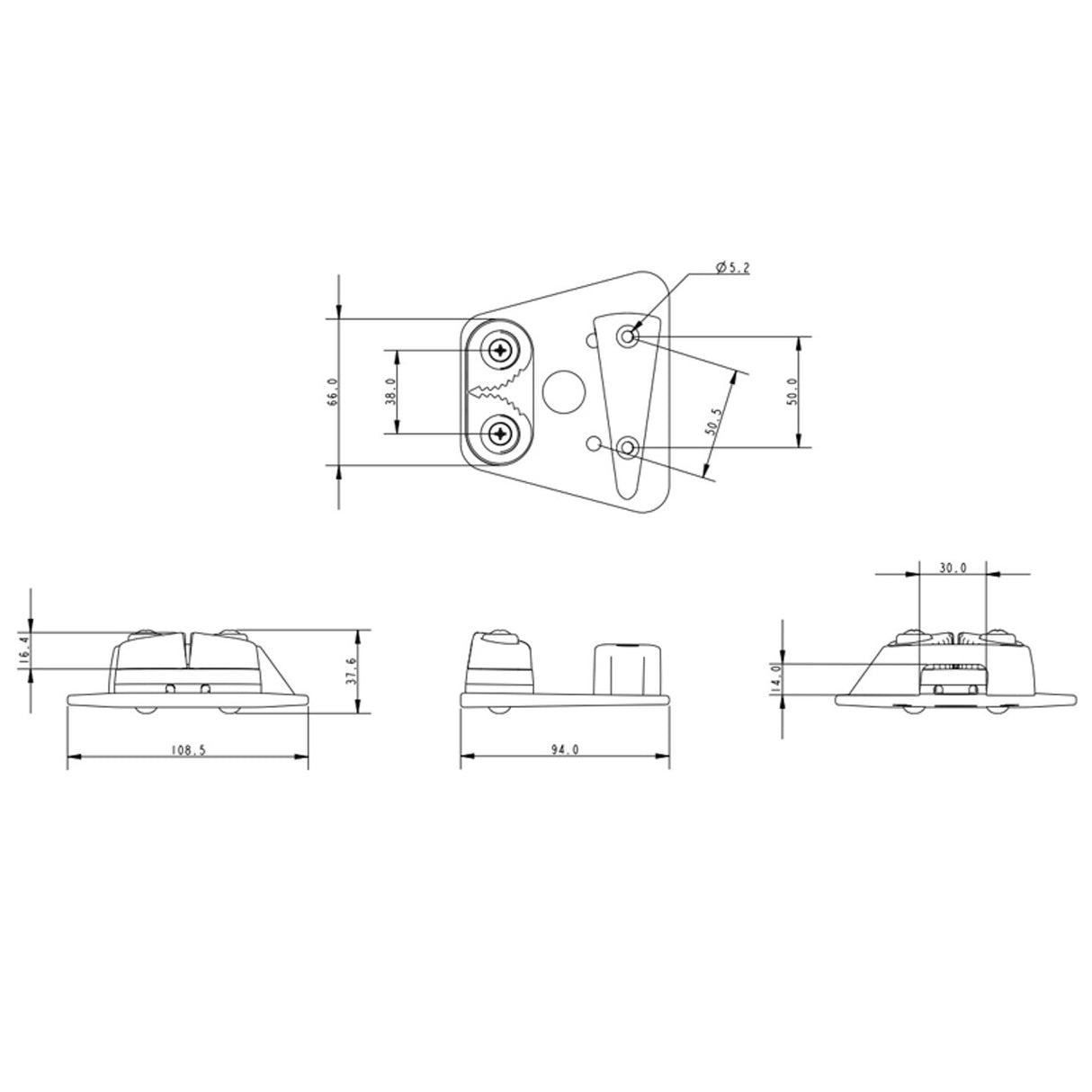

Technical Description
1 1/2 x 4 19/64 x 3 45/64 in
38x109x94 mm
5/32 - 25/64 in
4 - 10 mm
1 31/32 in
50 mm
M5/UNC No. 25/64 in
M5/UNC No. 10 mm
286.60 lb
130 kg
4.47 oz
127 g
5/32 - 25/64
