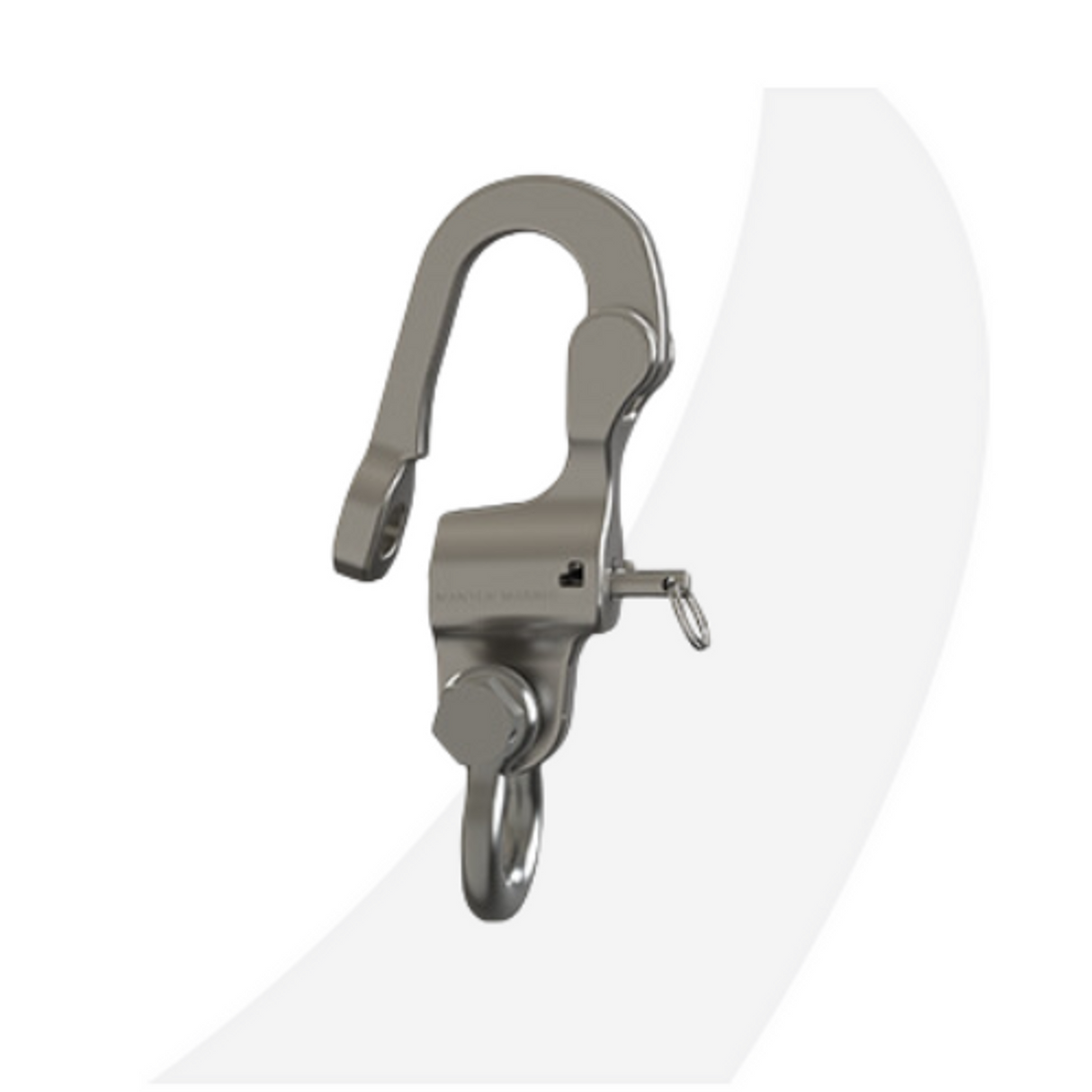

Mantus Marine 1/2 Duplex Mooring Snap Shackle
The Mantus Mooring Snap Shackle is designed to easily and securely attach a boat to a mooring ball. Simply load floating mooring line or the metal ring into the snap shackle, close the gate and the pin snaps closed, finally, lock the pin for extra safety. The Mantus Mooring Snap Shackle features a locking pin to ensure the gate stays locked once secured. We believe these mooring shackles are the strongest and the smartest way to moor your boat.
- Made from 2205 Duplex Stainless Steel to be stronger and more corrosion resistant.
- Features a proprietary secondary pin locking mechanism that ensures the gate stays closed
- Currently available in 1/2 inch and 5/8 inch version
| Snap Shackle Size | Anchor Shackle Size | Recommended for Chain Size | Recommended for boats with following Anchor Line Sizes | Snap Shackle Breaking Strength |
|---|---|---|---|---|
| 1/2 inch | 1/2 inch | Up to 3/8 inch (10mm) | 1/2 inc – 3/4 inch (12mm – 20mm) | 7.4 T / 16,300 lbs |
| 5/8 inch | 5/8 inch | Up to 1/2 inch (13mm) | 3/4 inch – 1 inch (20mm – 25mm) |
10T / 22,000 lbs |
