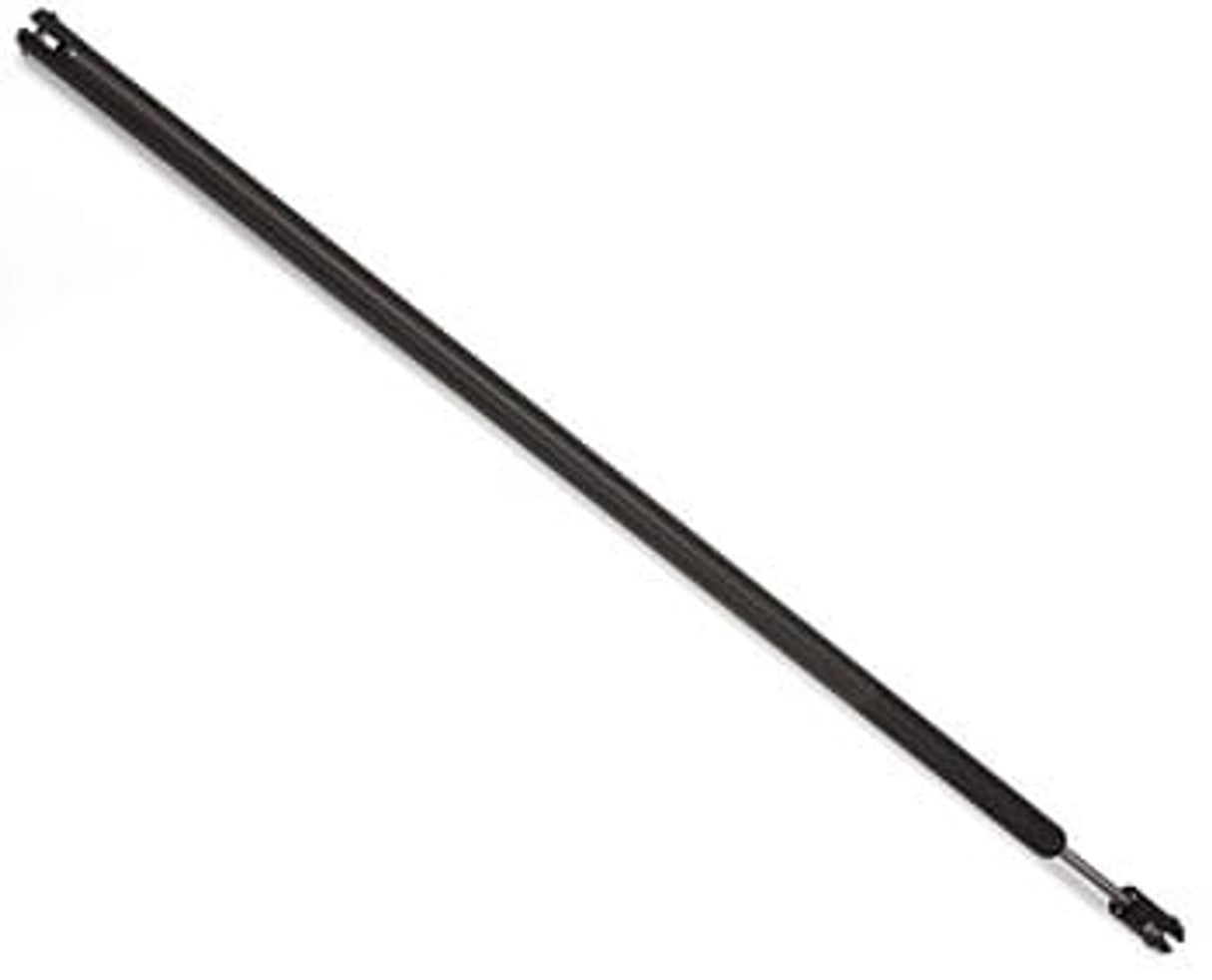

Sailtec -22 Hydraulic Boom Vang
SAILTEC manufactures boom vangs in the same manner as hydraulic cylinders. The boom vang has a nitrogen return system and if sized properly will support the weight of the boom, eliminating the need for a topping lift.
• Tension is 5000 psi or 350 bar
• Return force is at 500 psi or 35 bar
• Length is pin-to-pin closed and will be adjusted to meet your EXACT REQUIREMENTS
• Stainless cylinders available
• Standard finish is hard coat black anodized
Made of the SAME HIGH QUALITY materials used for SAILTEC cylinders, boom vangs have heavier piston rods than cylinders. Models -17 and larger have a passage in the piston rod to permit plumbing the system pressure to the cylinder jaw, to reduce the amount of the deck hose.
| CYLINDER SIZE | MODEL NO. | PISTON ROD SIZE INCH MM |
TENSION AT 5000 PSI LB KG |
LENGTH CLOSED INCH MM | STROKE INCH MM |
RETURN FORCE* LB KG | ||||||
| -8 | -08BV | 1/2" | 12.7 | 3300 | 1500 | 60" | 1524 | 9.5" | 241 | 400 | 180 | |
| -10 | -10BV | 5/8" | 16 | 4750 | 2100 | 70" | 1778 | 9.5" | 241 | 620 | 280 | |
| -12 | -12BV | 3/4" | 19 | 6500 | 2850 | 72" | 1828 | 10.0" | 254 | 883 | 405 | |
| -17 | -17BV | 7/8" | 22 | 8300 | 3820 | 76" | 1955 | 11.0" | 279 | 1202 | 547 | |
| -22 | -22BV | 7/8" | 25 | 12500 | 5600 | 84" | 2132 | 11.0" | 279 | 1600 | 726 | |
| -30 | -30BV | 1-1/4" | 32 | 21200 | 9615 | as specified | 12.0" | 305 | 2450 | 1110 | ||
| -40 | -40BV | 1-1/4" | 32 | 29900 | 13560 | as specified | 12.0" | 305 | 3600 | 1635 | ||
| -60 | -60BV | 1-1/2" | 38 | 39980 | 18100 | as specified | 14.0" | 356 | 4810 | 2180 | ||
| -90 | -90BV | 1-3/4" | 45 | 51810 | 23500 | as specified | 16.0" | 406 | 6283 | 2850 | ||
