Manufacturer part #: 36-09

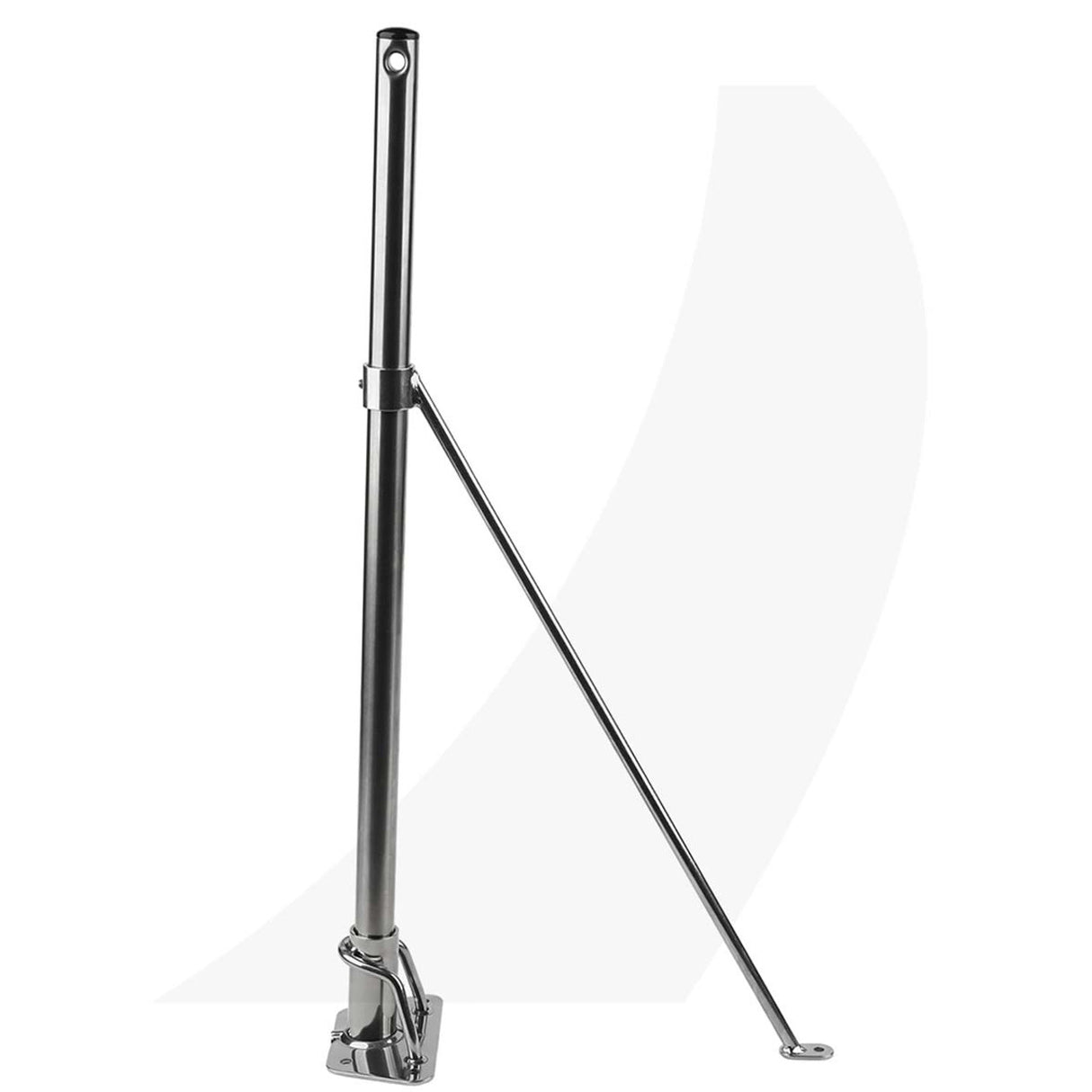

* Optional, stainless gate brace mounts 20 7/18" (530mm) high on stanchion with a welded base canted 60° to offer additional support at gate openings. Double stanchion ring accepts up to 5/16" (8mm) dia. wire for retrofitting double lifeline set-ups and mounts to 1"(25mm) stanchion with integral set screws.
Manufacturer part #: 36-09
These single or double 1" (25mm) dia. stanchions are offered in both 24" (610mm) or 26" (660mm) versions and accept coated wire up to 5/16" (8mm) dia.
Rugged stainless base is canted 5° inboard to match most deck cambers and features a 5/16" (8mm) welded rod reinforcement which also serves as a bail for snatch blocks and other gear.
| Features | American | Metric |
|---|---|---|
| Description | Gate Brace | |
| Lenght | 20 7/8 in | 530 mm |
| Width | 1 in | 25 mm |
| Thickness | 3/8 in | 10 mm |
| Weight | 12 oz | 340 g |
Manufacturer part #: 36-09
These single or double 1" (25mm) dia. stanchions are offered in both 24" (610mm) or 26" (660mm) versions and accept coated wire up to 5/16" (8mm) dia.
Rugged stainless base is canted 5° inboard to match most deck cambers and features a 5/16" (8mm) welded rod reinforcement which also serves as a bail for snatch blocks and other gear.
