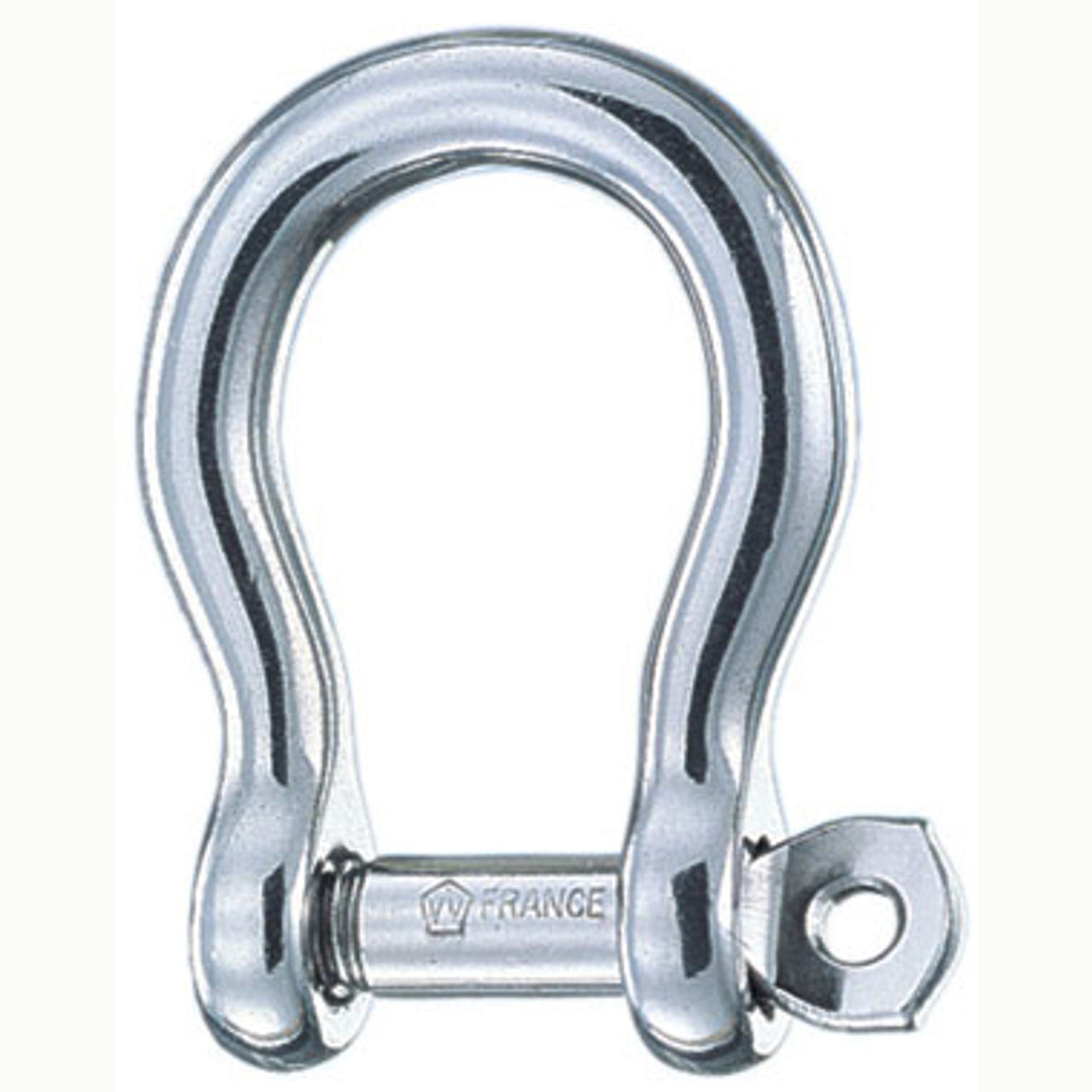

Captive pin bow shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads Single handed operation for more safety Applications
To be used when ample room is required Possibility to attach several lines or cables Material
Grade 316L stainless steel
 | Features | American | Metric |
|---|---|---|---|
| Description | Captive Pin Bow Shackles | ||
| A | 1 13/16 in | 46 mm | |
| B | 3/4 in | 20 mm | |
| C | 7/16 in | 11 mm | |
| Ø | 3/8 in | 10 mm | |
| Weight | 4.89 oz | 139 g | |
| Working Load | 3351 lb | 1520 kg | |
| Breaking Load | 11450 lb | 5200 kg | |
